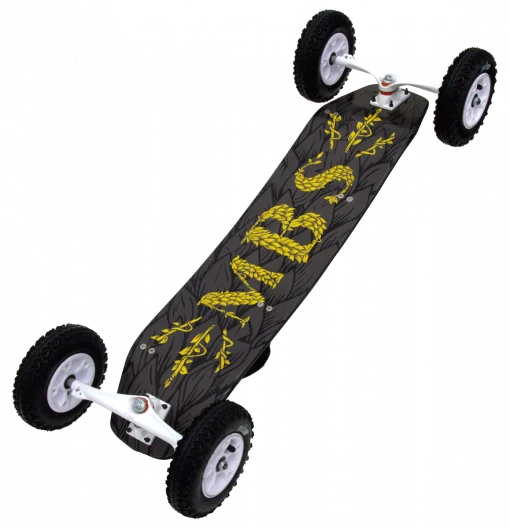

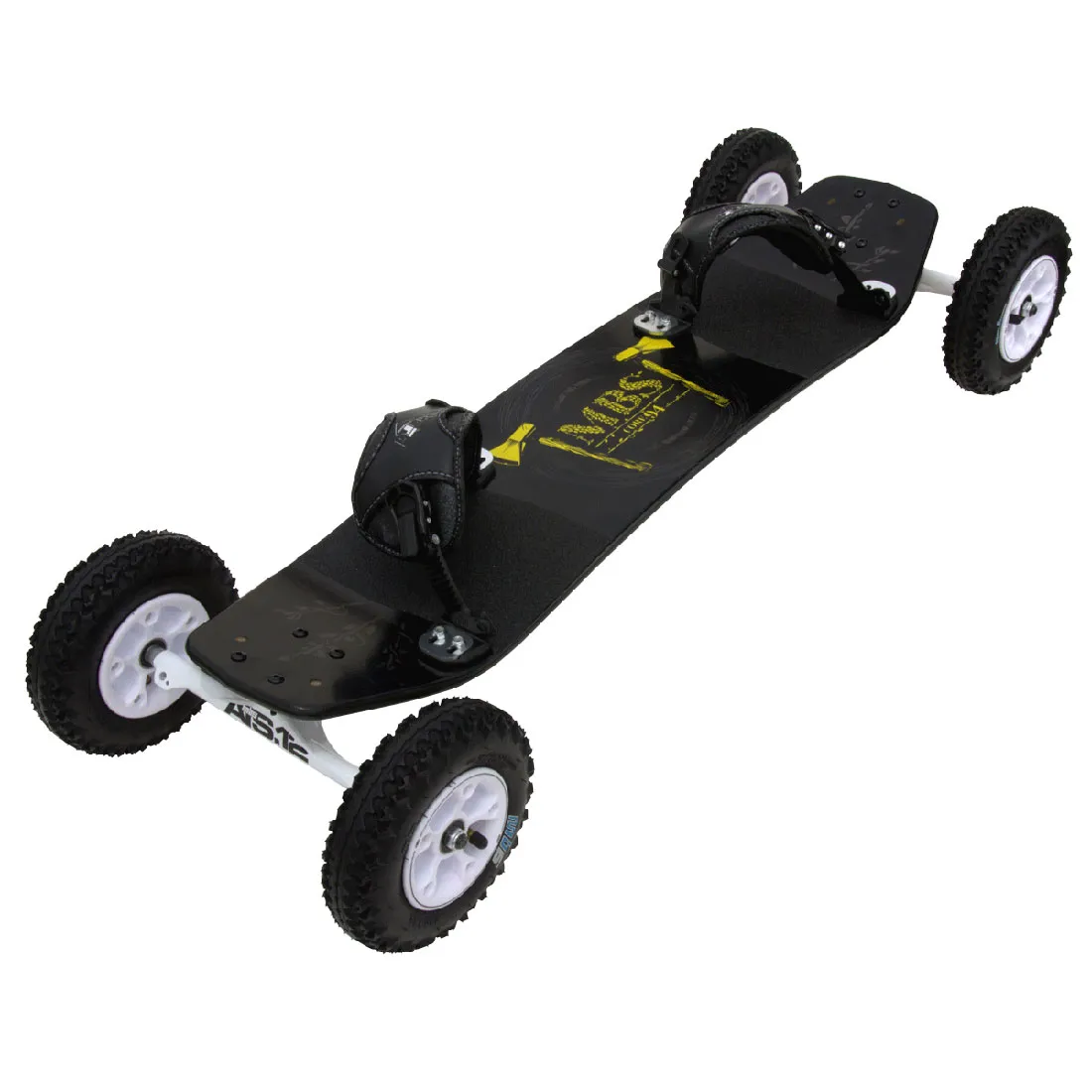

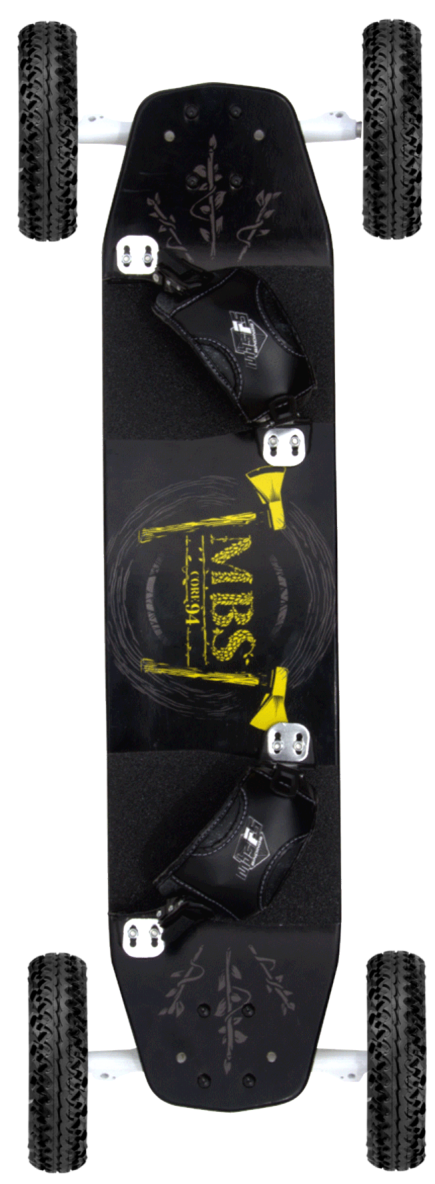

MBS has launched the Core 94 into a whole new league with a few critical upgrades, the most obvious of which is the advancement from F2 Velcro binding to MBS’ new F5 ratchet bindings. This is the first Core board to ever come with any ratchet binding, let alone bindings as strong, comfortable, and adjustable as the new F5. But it’s the hidden upgrade to our new ATS.12 trucks which move from 9.5mm to 12mm axles that really transforms this board into one even advanced riders can take seriously. With the chance of bending an axle reduced to nil, the Core 94 is ready to throw down in a way its predecessors only dreamed of.
COMPONENTS
- Deck – Core 94 (Axe)
- Trucks – ATS.12
- Bindings – F5
- Tyres – T3
- Hubs – Rockstar II
- Bearing – 12x28mm
TECH SPECS
-
- Part Description – Core 94 (Axe)
- Rider Style – Kite and Freestyle
- Overall Weight – 5.9 (kg) / 13.0 (lb)
- Overall Length – 108.0 (c) / 42.5 (in)
- Axle to Axle Length – 88.0 (c) / 34.6 (in)
- Deck Construction – Powerlam (Fiberglass, Maple)
- Deck Stiffness – Stiff
- Graphic Material – Maple
- Grip Tape – 46 Grit – Alum. Oxide
- Deck Tip Angle – 20
- Deck Length – 94.0 (c) / 37. (in)
- Deck Width – 22.0 (c) / 8.7 (in)
- Deck Weight – 1.9 (kg) / 4.1 (lb)
- Truck Type – ATS. 12
- Truck Material – Die-Cast Alum. Hanger and Base; Cromoly axle
- King Pin – CrMo
- Suspension – Orange Bushing
- Axle Width – 40.0 (c) / 15.8 (in)
- Axle Diameter – 12mm (Solid)
- Hub Type – Rockstar II
- Color – Black
- Accepts Bearing Size (OD) – 28mm
- Bearing – 12x28mm
- Tyre Type – T3 (8″) – 200×50
- Tyre Color – Black
- Binding Type – F5
- Hardware Type – Black Zinc / Nickel
- Grab Handle – Drilling Required
- Brake Compatible – Yes
- Brake Included? – No
- Assembly – Wheels Off Component Pack
- Overall Length with Matrix – 114.4cm
- Overall Length with Vector – 109.1cm
- Overall Length with ATS – 108.7cm
